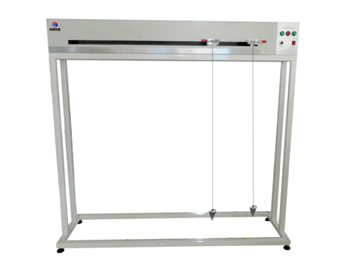

BG5316 Wires Static Winding Tester
AddDate: 2014-05-16
- Summary:
Applied to GB/T5023.2—2008” The rated voltage 450/750v PVC insulated cables”, GB/T5013.2—2008 “The rated voltage 450/750v rubber insulation cable part 2: test method”
Standards:
GB/T 5023-2008
GB/T 5013-2008
Technical parameters:
◆ Testing station: 1, it can only test 1 sample each time.
◆ Winding method: Clip A should be fixed, and clip B moves around horizontally in clip A’s horizontal line.
◆ Winding length: 200~1500 mm, adjustable
◆ Suitable samples’ outer diameter: Φ 6~32mm
◆ Motor power: 370W
◆ Sample length: 3000±5% mm
◆ Clips’ distance to the ground: 1500mm
◆ Failures detect and shundown: Machine sill stop when tested conductor circuit break and short circuit.
◆ Auto shutdown function: Equipped with high precision counter, when the set number is reached, the machine will stop working automatically.
◆ Required power: AC220(±10%)V/50HZ
◆ Materials:
Sheet metal material: Uses high-quality (t=1.2mm) electrostatic plates, using CNC machining, shell’s surface spray treatment, which is more clean and beautiful.
Rack Material: High quality aluminum
◆ SYSTEM:
Mechanical drive system: DC gear motor with brake + sprocket chain structure
Control system: Usinh relay control system, all electronics components use the leading brands, which can better ensure machine’s performance and detect accuracy.
◆ Safety protection devices: Power overload, short circuit protection and control loop overload protection.
